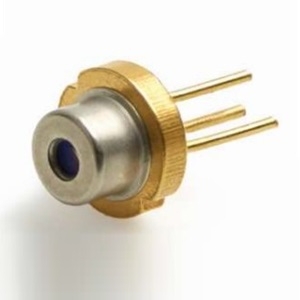

T-Series-M9-MM-830nm-50um-1W

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The T-Series-M9-MM-830nm-50um-1W from Sheaumann Laser is a Laser Diode with Wavelength 830 nm, Output Power 1 W, Output Power 1 W, Threshold Current 200 to 350 mA, Operating Current 1.1 to 1.35 A. More details for T-Series-M9-MM-830nm-50um-1W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    T-Series-M9-MM-830nm-50um-1W
  • Manufacturer
    Sheaumann Laser
  • Description
    830 nm Laser Diodes with 1 W Power and 50 µm Emitter width

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Output Power
    1 W
  • Output Power
    1 W
  • Slope Efficiency
    1 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    30 Degree (Vertical), 8 Degree (Horizontal)
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    30 Degree
  • Emitter Width
    50 µm
  • Threshold Current :
    200 to 350 mA
  • Operating Current
    1.1 to 1.35 A
  • Operating Current
    1.1 to 1.35 A
  • Operating Voltage
    1.9 to 2.2 V
  • Laser Class
    CLASS IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    TO-Can
  • Package
    TO-9

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
