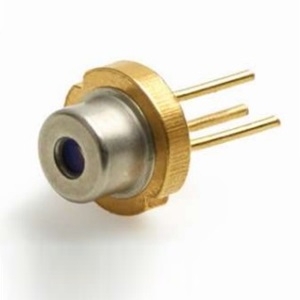

T-Series-M9-MM-915nm-100um-1W

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The T-Series-M9-MM-915nm-100um-1W from Sheaumann Laser is a Laser Diode with Wavelength 915 nm, Output Power 1 W, Output Power 1 W, Threshold Current 250 to 550 mA, Operating Current 1.3 to 1.8 A. More details for T-Series-M9-MM-915nm-100um-1W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    T-Series-M9-MM-915nm-100um-1W
  • Manufacturer
    Sheaumann Laser
  • Description
    915 nm Laser Diodes with 1.3 to 1.8 A Current

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    915 nm
  • Output Power
    1 W
  • Output Power
    1 W
  • Slope Efficiency
    1 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    30 Degree (Vertical), 9 Degree (Horizontal)
  • Beam Divergence Parallel
    9 Degree
  • Beam Divergence Perpendicular
    30 Degree
  • Emitter Width
    100 µm
  • Threshold Current :
    250 to 550 mA
  • Operating Current
    1.3 to 1.8 A
  • Operating Current
    1.3 to 1.8 A
  • Operating Voltage
    1.7 to 2.2 V
  • Laser Class
    CLASS IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    TO-Can
  • Package
    TO-9

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
