BL976-PAG500

Laser Diode by Thorlabs Inc
174 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The BL976-PAG500 from Thorlabs Inc is a Laser Diode with Wavelength 976 nm, Output Power 0.5 W, Output Power (CW) 0.5 W, Operating Current 0.83 to 0.92 A, Operating Voltage 3.3 V. More details for BL976-PAG500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BL976-PAG500
  • Manufacturer
    Thorlabs Inc
  • Description

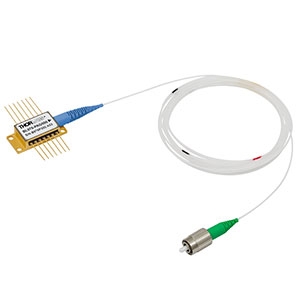

    976 nm, 500 mW, Butterfly FBG-Stabilized Laser, PM Fiber, FC/APC

General Parameters

  • Technology
    Fiber-Bragg-Grating (FBG), Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    976 nm
  • Output Power
    0.5 W
  • Output Power (CW)
    0.5 W
  • Reverse Voltage
    2 V
  • Operating Current
    0.83 to 0.92 A
  • Operating Voltage
    3.3 V
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-Pin

Physical Properties

  • RoHS
    Yes

Technical Documents
Click to view more product details on manufacturer's website
