BL976-PAG700

Laser Diode by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

The BL976-PAG700 from Thorlabs Inc is a Laser Diode with Wavelength 976 nm, Output Power 0.7 W, Output Power (CW) 0.7 W, Operating Current 1.09 to 1.15 A. More details for BL976-PAG700 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BL976-PAG700
  • Manufacturer
    Thorlabs Inc
  • Description

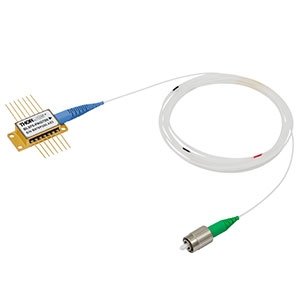

    976 nm, 700 mW, Butterfly FBG-Stabilized Laser, PM Fiber, FC/APC

General Parameters

  • Technology
    Fiber-Bragg-Grating (FBG), Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    976 nm
  • Output Power
    0.7 W
  • Output Power (CW)
    0.7 W
  • Operating Current
    1.09 to 1.15 A
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-Pin

Physical Properties

  • RoHS
    Yes
