Laser Diode by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

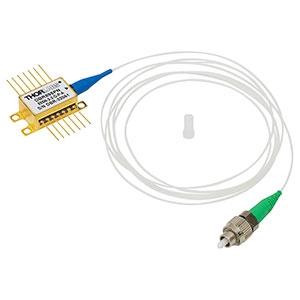

The DBR895PN from Thorlabs is a single-frequency laser diode that is well-suited for a low-noise pump source for Cesium atomic clocks, second harmonic generation, and time-resolved fluorescence spectroscopy. Operating at 895 nm, it provides an output power of over 10 mW. The laser includes an integrated optical isolator, thermoelectric cooler (TEC), thermistor, and monitor photodiode. It is packaged in a 14-pin butterfly package with PM780-HP polarization-maintaining optical fiber and an FC/APC connector with the connector key aligned to the slow axis of the fiber.

Product Specifications View similar products

Product Details

  • Part Number
  • Manufacturer
    Thorlabs Inc
  • Description
    895 nm, 12 mW DBR Butterfly Laser with Isolator, PM Fiber


  • Application
    Spectroscopy, Time-Resolved Fluorescence

General Parameters

  • Technology
    Distributed-Bragg-Reflector (DBR)
  • Operation Mode
    CW Laser
  • Wavelength
    893 to 895 nm
  • Output Power
    10 to 12 mW
  • Spectral Width (FWHM)
    1 MHz
  • Operating Voltage
    2 to 2.5 V
  • Operating Current
    300 mA
  • Reverse Voltage
    2 V
  • Reverse Voltage(PD)
    15 V
  • Threshold Current
    60 mA
  • Fiber Modes
    Polarization Maintaining
  • Numerical Aperture
  • Polarization Extinction Ratio
    16 dB
  • Slope Efficiency
    0.04 to 0.05 W/A
  • Package Type
  • Package
    14-PIn Butterfly Package
  • Thermistor Resistance
    10 kOhms
  • Type
    Fiber-Coupled Laser Diode
  • Wavelength Temp. Coefficient
    0.06 nm/°C

Physical Properties

  • Fiber length
    1.5 m

Connections & Interface

  • Connector


  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -10 to 65 Degree C
