FPL785C

Laser Diode by Thorlabs Inc
174 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The FPL785C from Thorlabs Inc is a Laser Diode with Wavelength 785 nm, Output Power 0.3 W, Output Power (CW) 0.3 W, Operating Current 0.4 to 0.45 A. More details for FPL785C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FPL785C
  • Manufacturer
    Thorlabs Inc
  • Description

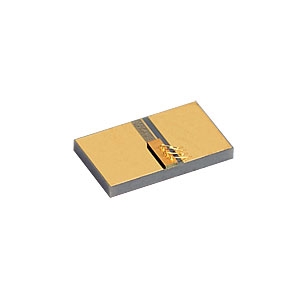

    785 nm, 300 mW, Chip on Submount, Laser Diode

General Parameters

  • Technology
    Fabry-Perot (FP), Quantum Well
  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    785 nm
  • Output Power
    0.3 W
  • Output Power (CW)
    0.3 W
  • Configuration
    Single-Emitter
  • Reverse Voltage
    2 V
  • Operating Current
    0.4 to 0.45 A
  • Fiber Modes
    Single Mode
  • Package Type
    Sub-Mount
  • Package
    Chip on Sub-Mount

Physical Properties

  • Dimension
    3 x 5 mm
  • RoHS
    Yes
