FPV785P

Laser Diode by Thorlabs Inc | www.thorlabs.com

Note: Your Quotation Request will be directed to Thorlabs Inc.

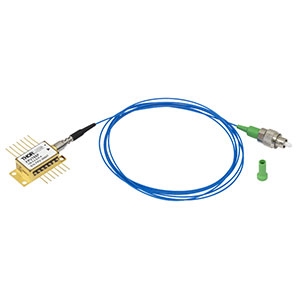

The FPV785P from Thorlabs is a 785 nm Wavelength-Stabilized Laser Diode is based on quantum well epitaxial layer growth and a highly reliable ridge waveguide structure with external volume-holographic-grating (VHG) feedback. This laser diode produces a wavelength-stabilized spectrum with a single-frequency narrow linewidth over the operating power range of approximately 30 to 50 mW. This single-frequency laser diode is housed in a butterfly package with an internal optical isolator, monitor diode, TEC and a thermistor that allows the laser to be temperature controlled. The output is coupled to 1.0 m of FC/APC-terminated PM780-HP fiber.

 Product Specifications

    Product Details

    • Part Number :
      FPV785P
    • Manufacturer :
      Thorlabs Inc
    • Description :
      785 nm Grating Stabilized, Single-Frequency Laser Diode

    Applications

    • Application :
      Microscopy, Raman Spectroscopy

    General Parameters

    • Technology :
      Quantum Well
    • Operation Mode :
      CW Laser
    • Wavelength :
      784 to 786 nm
    • Output Power :
      20 to 50 mW
    • Spectral Width (FWHM) :
      15 MHz
    • Operating Voltage :
      2.1 to 2.8 V
    • Operating Current :
      410 mA
    • Reverse Voltage(PD) :
      20 V
    • Reverse Current(LD) :
      2 V
    • Threshold Current :
      80 to 150 mA
    • Monitor Current :
      0.15 mA
    • Fiber Modes :
      Polarization Maintaining
    • Polarization Extinction Ratio :
      15 dB
    • Operating Current (CW) :
      410 mA
    • Slope Efficiency :
      0.25 W/A
    • Package Type :
      Butterfly
    • Package :
      14-Pin Butterfly
    • Thermistor Resistance :
      10 kOhms
    • Type :
      Fiber-Coupled Laser Diode
    • Note :
      PM780-HP Fiber, SMSR: 25 to 40 dB

    Physical Properties

    • Fiber length :
      1 m

    Connections & Interface

    • Connector :
      FC/APC

    Temperature

    • Operating Temperature :
      0 to 70 Degree C
    • Storage Temperature :
      -10 to 70 Degree C
