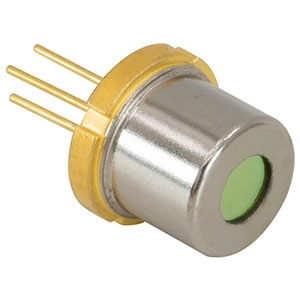

L1370G1

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The L1370G1 from Thorlabs Inc is a Laser Diode with Wavelength 1350 to 1390 nm, Output Power 2 W, Output Power 2 W, Output Power (CW) 2 W, Threshold Current 490 mA. More details for L1370G1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L1370G1
  • Manufacturer
    Thorlabs Inc
  • Description
    1370 nm Laser Diode, 2.0 W

Applications

  • Application
    LIDAR, Aerospace, Illumination

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1350 to 1390 nm
  • Output Power
    2 W
  • Output Power
    2 W
  • Output Power (CW)
    2 W
  • Slope Efficiency
    0.44 W/A
  • Configuration
    Stack
  • Beam Divergence Parallel
    6 Degree
  • Beam Divergence Perpendicular
    22 Degree
  • Laser Gain Medium
    InP
  • Threshold Current :
    490 mA
  • Reverse Voltage
    2 V
  • Operating Current
    5 to 8 A
  • Operating Current
    5 to 8 A
  • Operating Voltage
    1.4 V
  • Package Type
    TO-Can
  • Package
    9 mm
  • Stack/Array
    Array/Stack

Temperature

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 80 Degree C
