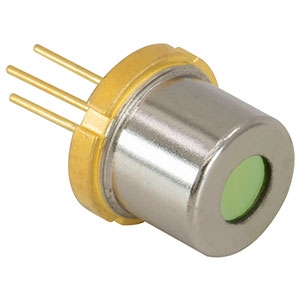

L1575G1

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The L1575G1 from Thorlabs Inc is a Laser Diode with Wavelength 1555 to 1595 nm, Output Power 1.7 W, Output Power 1.7 W, Output Power (CW) 1.7 W, Threshold Current 640 mA. More details for L1575G1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L1575G1
  • Manufacturer
    Thorlabs Inc
  • Description
    1575 nm Laser Diode, 1.7 W

Applications

  • Application
    LIDAR, Aerospace, Illumination

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1555 to 1595 nm
  • Output Power
    1.7 W
  • Output Power
    1.7 W
  • Output Power (CW)
    1.7 W
  • Slope Efficiency
    0.36 W/A
  • Configuration
    Stack
  • Beam Divergence Parallel
    6 Degree
  • Beam Divergence Perpendicular
    28 Degree
  • Laser Gain Medium
    InP
  • Threshold Current :
    640 mA
  • Reverse Voltage
    2 V
  • Operating Current
    5 to 8 A
  • Operating Current
    5 to 8 A
  • Operating Voltage
    1.5 V
  • Package Type
    TO-Can
  • Package
    9 mm
  • Stack/Array
    Array/Stack

Temperature

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 80 Degree C
