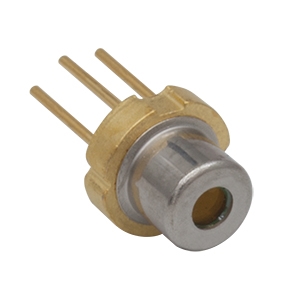

L405G2

Laser Diode by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

The L405G2 from Thorlabs is a 405 nm, 35 mW laser diode suited for a variety of applications, such as fluorescence and spectroscopic measurements, flow cytometry, imaging and microscopy, and materials processing. Packaged in a Ø3.8 mm TO can with a G pin configuration, the diode is MOCVD grown, can be operated in CW or pulsed mode, and is optimized for high efficiency lasing over a broad temperature range of 0 to 90 C. Every L405G2 is tested to ensure a center wavelength tolerance of ±1 nm.

 Product Specifications

    Product Details

    • Part Number :
      L405G2
    • Manufacturer :
      Thorlabs Inc
    • Description :
      405 nm, 35 mW Laser Diode for Spectroscopic Applications

    Applications

    • Application :
      Fluorescence and Spectroscopic Measurements, Flow Cytometry, Imaging and Microscopy, Materials Processing

    General Parameters

    • Configuration :
      Single Emitter
    • Technology :
      Fabry-Perot (FP), Distributed Feedback (DFB)
    • Operation Mode :
      CW / Pulse Laser
    • Wavelength :
      404 to 406 nm
    • Wavelength Tolerance :
      ±1 nm
    • Output Power :
      up to 35 mW
    • Operating Voltage :
      4.9 to 5.7 V
    • Operating Current :
      0.05 to 0.06 A
    • Reverse Voltage :
      2 V
    • Threshold Current :
      25 to 30 mA
    • Beam Divergence Parallel :
      10 Degree
    • Beam Divergence Perpendicular :
      21 Degree
    • Laser Color :
      UltraViolet
    • Fiber Modes :
      Single Mode
    • Polarization Extinction Ratio :
      22 dB
    • Slope Efficiency :
      1.4 to 1.7 W/A
    • Package Type :
      TO-Can
    • Package :
      3.8 mm TO can
    • Type :
      Free Space Laser Diode

    Temperature

    • Operating Temperature :
      0 to 90 Degree C
    • Storage Temperature :
      -40 to 90 Degree C
