LP637-SF70

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The LP637-SF70 from Thorlabs Inc is a Laser Diode with Wavelength 637 nm, Output Power 0.07 W, Output Power (CW) 0.07 W, Operating Current 0.02 to 0.025 A, Operating Voltage 2.7 to 2.9 V. More details for LP637-SF70 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LP637-SF70
  • Manufacturer
    Thorlabs Inc
  • Description

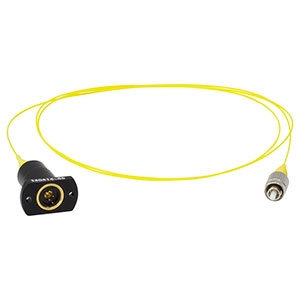

    637 nm, 70 mW, G Pin Code, SM Fiber-Pigtailed Laser Diode, FC/PC

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    637 nm
  • Output Power
    0.07 W
  • Output Power (CW)
    0.07 W
  • Configuration
    Single-Emitter
  • Reverse Voltage
    2 V
  • Operating Current
    0.02 to 0.025 A
  • Operating Voltage
    2.7 to 2.9 V
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can Pigtailed
  • Package
    1 mm

Physical Properties

  • Dimension
    5.6 mm
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC, PC

Technical Documents
Click to view more product details on manufacturer's website
