LP785-SF20

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The LP785-SF20 from Thorlabs Inc is a Laser Diode with Wavelength 785 nm, Output Power 0.02 W, Output Power (CW) 0.02 W, Operating Current 0.085 to 0.12 A, Operating Voltage 1.9 to 2.2 V. More details for LP785-SF20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LP785-SF20
  • Manufacturer
    Thorlabs Inc
  • Description

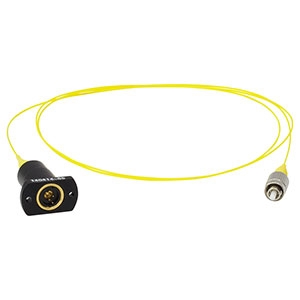

    785 nm, 20 mW, A Pin Code, SM Fiber-Pigtailed Laser Diode, FC/PC

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    785 nm
  • Output Power
    0.02 W
  • Output Power (CW)
    0.02 W
  • Configuration
    Single-Emitter
  • Reverse Voltage
    2 V
  • Operating Current
    0.085 to 0.12 A
  • Operating Voltage
    1.9 to 2.2 V
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can Pigtailed
  • Package
    1 mm

Physical Properties

  • Dimension
    5.6 mm
  • RoHS
    Yes
