WSLP-1550-xxxm-9-FP

Laser Diode by Wavespectrum Laser Inc.
Request Quote

Note: Your Quotation Request will be directed to Wavespectrum Laser Inc..

The WSLP-1550-xxxm-9-FP from Wavespectrum Laser Inc. is a Laser Diode with Wavelength 1520 to 1580 nm, Output Power 0.0005 to 0.002 W, Output Power (CW) 0.0005 to 0.002 W, Threshold Current 5 to 15 mA, Operating Current 0.002 A. More details for WSLP-1550-xxxm-9-FP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    WSLP-1550-xxxm-9-FP
  • Manufacturer
    Wavespectrum Laser Inc.
  • Description

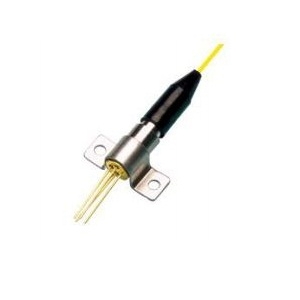

    1550nm Coaxial Package Pigtailed Laser Diode

Applications

  • Application
    Optical Bidi Module and Optical Receiver, Optical Transmitter of Analog Signal, Optical Transmitter of Data Signal

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1520 to 1580 nm
  • Output Power
    0.0005 to 0.002 W
  • Output Power (CW)
    0.0005 to 0.002 W
  • Threshold Current :
    5 to 15 mA
  • Operating Current
    0.002 A
  • Reverse Voltage(PD)
    15 V
  • Operating Voltage
    1.1 to 1.6 V
  • Monitor Current
    0.1 mA
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can Pigtailed

Temperature

  • Operating Temperature
    -10 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
