LM28-C3S-TI-N

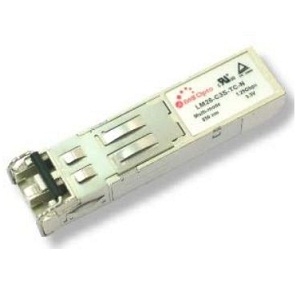

Fiber Optic Transceiver by APAC Opto Electronics Inc.
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to APAC Opto Electronics Inc..

The LM28-C3S-TI-N from APAC Opto Electronics Inc. is a Fiber Optic Transceiver with Data Rate 1063 to 1250 Mb/s, Wavelength 850 nm, Distance/Reach 550 m, Output Power -9.5 to -4 dBm, Receiver Sensitivity -18 dBm. More details for LM28-C3S-TI-N can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LM28-C3S-TI-N
  • Manufacturer
    APAC Opto Electronics Inc.

Applications

  • Applications
    100-M5-SN-I, 100-M6-SN-I
  • Standard Supported
    IEEE802.3z

Connections & Interface

  • Connector
    LC

General Parameters

  • Data Rate
    1063 to 1250 Mb/s
  • Wavelength
    850 nm
  • Distance/Reach
    550 m
  • Output Power
    -9.5 to -4 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -18 dBm
  • Rx Power
    -18 dBm
  • Tx Power
    -4 to -9.5 dBm
  • Tx/Rx Component
    VCSEL(Tx)
  • Supply Current
    250 mA
  • Supply Voltage
    3.3V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
