ADL-52051SW

Laser Diode by Arima Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Arima Lasers.

The ADL-52051SW from Arima Lasers is a Laser Diode with Wavelength 510 nm, 520 nm, 530 nm, Output Power 5 mW, Output Power 5 mW, Output Power (CW) 5 mW, Operating Current 50 to 80 mA. More details for ADL-52051SW can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ADL-52051SW
  • Manufacturer
    Arima Lasers
  • Description

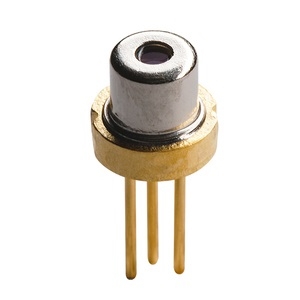

    APC Visible Laser Diode 520nm 5mW with TO-Can Package

Applications

  • Application
    Laser level, illumination, meter, scanner, detector, point light, sweeper, game lighting, special wavelength light source
  • Application Industry
    Industry, Consumer, Health

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    510 nm, 520 nm, 530 nm
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Output Power (CW)
    5 mW
  • Beam Divergence
    3 to 12 Degree (Parallel), 15 to 30 Degree (Perpendicular)
  • Beam Divergence Parallel
    3 to 12 Degree
  • Beam Divergence Perpendicular
    15 to 30 Degree
  • Duty Cycle
    0.5
  • Operating Current
    50 to 80 mA
  • Operating Current
    50 to 80 mA
  • Operating Voltage
    5.8 to 7 V
  • Operating Current (CW)
    50 to 80 mA
  • Capacitance
    10 uF
  • Laser Color
    Visible
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-Can (3.3 mm)

Temperature

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
