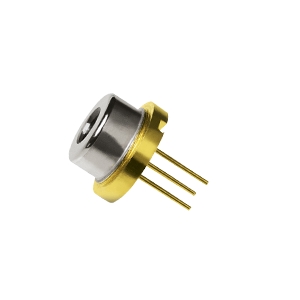

ADL-63054TL

Laser Diode by Arima Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Arima Lasers.

The ADL-63054TL from Arima Lasers is a Laser Diode with Wavelength 630 nm, 635 nm, 640 nm (Peak), Output Power 5 mW, Output Power 5 mW, Output Power (CW) 5 mW, Threshold Current 24 to 30 mA. More details for ADL-63054TL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ADL-63054TL
  • Manufacturer
    Arima Lasers
  • Description
    635nm 5mW Laser Diode, 50? Reliable Operation

Applications

  • Application
    High precision measuring instruments, High precision industrial laser markers, Survey and engineering instruments

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    630 nm, 635 nm, 640 nm (Peak)
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Output Power (CW)
    5 mW
  • Slope Efficiency
    0.4 to 0.8 mW/mA (Differential)
  • Beam Divergence
    6 to 11 Degree (Parallel), 30 to 40 Degree (Perpendicular)
  • Beam Divergence Parallel
    6 to 11 Degree
  • Beam Divergence Perpendicular
    30 to 40 Degree
  • Threshold Current :
    24 to 30 mA
  • Forward Current(PD)
    10 mA
  • Reverse Voltage
    2 V
  • Operating Current
    33 to 40 mA
  • Operating Current
    33 to 40 mA
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2.2 to 2.5 V
  • Operating Current (CW)
    33 to 40 mA
  • Monitor Current
    0.1 to 0.3 mA
  • Package Type
    TO-Can
  • Package
    TO-Can

Temperature

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
