SLDP-405-5-SM

Laser Diode by CNI Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

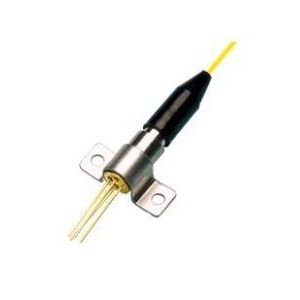

The SLDP-405-5-SM from CNI Laser is a Laser Diode with Wavelength 405 nm, Output Power 5 mW, Output Power 5 mW, Output Power (CW) 5 mW, Threshold Current 35 mA. More details for SLDP-405-5-SM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SLDP-405-5-SM
  • Manufacturer
    CNI Laser

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    405 nm
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Output Power (CW)
    5 mW
  • Spectral Width (FWHM)
    2 nm
  • Wavelength Tolerance
    ±10 nm
  • Threshold Current :
    35 mA
  • Reverse Voltage
    5 V
  • Operating Current
    120 mA
  • Operating Voltage
    4.6 V
  • Laser Color
    Ultraviolet
  • Fiber Modes
    Single Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can Pigtailed

Physical Properties

  • Fiber core diameter
    3 µm
  • Fiber length
    80 cm

Connections & Interface

  • Connector
    FC, SC, SMA-905

Temperature

  • Operating Temperature
    0 to 75 Degree C
  • Storage Temperature
    -40 to 85 Degree C
