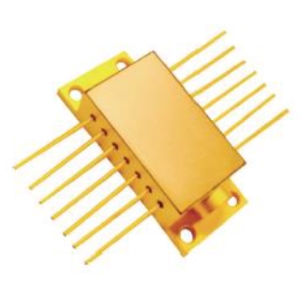

FRLD-1064-800-FS-VBG-BTF

Laser Diode by FrankFurt Laser Company

Note: Your Quotation Request will be directed to FrankFurt Laser Company.

The FRLD-1064-800-FS-VBG-BTF from FrankFurt Laser Company is a Laser Diode with Wavelength 1063.5 to 1064.5 nm, Output Power 800 mW, Operating Voltage 1.8 V, Operating Current 1.5 A, Operating Current 2000 µA. More details for FRLD-1064-800-FS-VBG-BTF can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    FRLD-1064-800-FS-VBG-BTF
  • Manufacturer
    FrankFurt Laser Company
  • Description
    Free Space Narrow Linewidth Laser Diode from 1063.5 to 1064.5 nm

Applications

  • Application
    Raman Spectroscopy, Scientific Research, Analysis
  • Application Industry
    Medical

General Parameters

  • Technology
    Volume Bragg Grating (VBG)
  • Wavelength
    1063.5 to 1064.5 nm
  • Output Power
    800 mW
  • Cooling Method
    Thermoelectric cooler
  • Spectral Width (FWHM)
    0.1 nm
  • Operating Voltage
    1.8 V
  • Operating Current
    1.5 A
  • Operating Current
    2000 µA
  • Threshold Current
    200 mA
  • Slope Efficiency
    0.6 W/A
  • Package Type
    Butterfly
  • Package
    14 Pin Butterfly Package
  • Lead Soldering Temperature
    250 Degree C
  • Relative Humidity
    75% (Operating) 90% (Storage)
  • Thermistor Resistance
    10 KOhms
  • Type
    Free Space Laser Diode

Temperature

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
