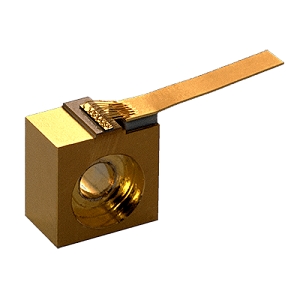

BA-1064-CM-8W

Laser Diode by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The BA-1064-CM-8W from Innolume is a Laser Diode with Wavelength 1054 nm, 1064 nm, 1074 nm, (Mean), Output Power 8 W, Output Power 8 W, Output Power (CW) 8 W, Threshold Current 0.5 to 0.8 A. More details for BA-1064-CM-8W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BA-1064-CM-8W
  • Manufacturer
    Innolume
  • Description
    High Power Broad-Area Laser Diode on Open Heatsink

Applications

  • Application
    Medical Devices Sensors Scientific Research et al.

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1054 nm, 1064 nm, 1074 nm, (Mean)
  • Output Power
    8 W
  • Output Power
    8 W
  • Output Power (CW)
    8 W
  • Spectral Width (FWHM)
    4 to 9 nm
  • Beam Divergence
    35 to 40 Degree (Parallel), 3 to 11 Degree (Perpendicular)
  • Beam Divergence Parallel
    3 to 11 Degree
  • Beam Divergence Perpendicular
    35 to 40 Degree
  • Transverse Mode
    TE
  • Wavelength Temp. Coefficient
    0.4 nm/Degree C
  • Threshold Current :
    0.5 to 0.8 A
  • Forward Voltage
    1.5 to 1.9 V
  • Reverse Voltage
    2 V
  • Operating Current
    10 to 11.5 A
  • Operating Current
    10 to 11.5 A
  • Operating Voltage
    1.5 to 1.9 V
  • Operating Current (CW)
    10 to 11.5 A
  • Laser Color
    Infrared
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    C-Mount
  • Package
    C-mount
  • Note
    Mesa width (90 µm)

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    5 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C
