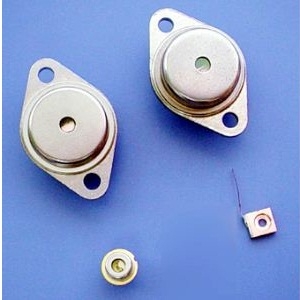

LD-980-1W50

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The LD-980-1W50 from Lasermate Group is a Laser Diode with Wavelength 980 nm, Output Power 1000 mW, Output Power 1000 mW, Threshold Current 0.25 A, Operating Current 1.36 A. More details for LD-980-1W50 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LD-980-1W50
  • Manufacturer
    Lasermate Group

Applications

  • Application
    Solid-state Laser Pumping, Medical Usage, Infrared Sources for Night Viewing, Information Recognition

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm
  • Output Power
    1000 mW
  • Output Power
    1000 mW
  • Spectral Width (FWHM)
    3.5 nm
  • Slope Efficiency
    0.88 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    48 Degree
  • Wavelength Tolerance
    +/-10 nm
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    0.25 A
  • Reverse Voltage
    2 V
  • Operating Current
    1.36 A
  • Operating Current
    1.36 A
  • Operating Voltage
    2 V
  • Laser Color
    Infrared
  • Emitting Area
    100 x 1 µm
  • Series Resistance
    0.5 Ohms
  • Package Type
    TO-Can
  • Package
    TO-9

Physical Properties

  • Dimension
    9 mm

Temperature

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -40 to 85 Degree C
