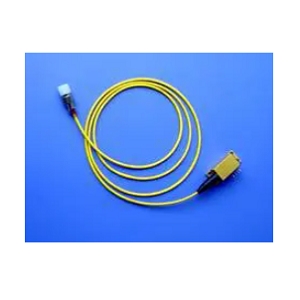

T80H-P1-X750

Laser Diode by Lasermate Group
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The T80H-P1-X750 from Lasermate Group is a Laser Diode with Wavelength 800 nm, 820 nm (Central), Output Power 750 mW, Output Power 750 mW, Threshold Current 250 mA, Operating Current 1250 mA. More details for T80H-P1-X750 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    T80H-P1-X750
  • Manufacturer
    Lasermate Group
  • Description
    808nm Fiber Coupled Laser Diodes 750mW-1500mW MM Fiber Multimode Beam

Applications

  • Application
    Laser pumping, Medical usage, Printing, Heating, Material processing, Marking

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    800 nm, 820 nm (Central)
  • Output Power
    750 mW
  • Output Power
    750 mW
  • Spectral Width (FWHM)
    <4 nm
  • Slope Efficiency
    >0.75 W/A
  • Threshold Current :
    250 mA
  • Operating Current
    1250 mA
  • Operating Current
    1250 mA
  • Operating Voltage
    <2 V
  • Fiber Modes
    Multi-Mode
  • Series Resistance
    <0.2 Ohms
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed

Physical Properties

  • Fiber core diameter
    105 µm
  • Fiber length
    >70 cm

Connections & Interface

  • Connector
    FC/ST/SMA905
