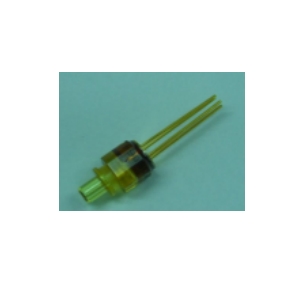

TLC-P85A4x6-4

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The TLC-P85A4x6-4 from Lasermate Group is a Laser Diode with Wavelength 830 nm, 850 nm, 860 nm, Output Power 350 µW, Output Power 350 µW, Threshold Current 1.5 to 2.75 mA, Operating Current 6 mA. More details for TLC-P85A4x6-4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TLC-P85A4x6-4
  • Manufacturer
    Lasermate Group
  • Description
    4.25Gbps 850nm VCSEL LC-TOSA with Monitor PD

Applications

  • Application
    4.25Gbps data rate operation

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm, 850 nm, 860 nm
  • Output Power
    350 µW
  • Output Power
    350 µW
  • Spectral Width (FWHM)
    0.85 nm
  • Slope Efficiency
    0.05 to 0.12 mW/mA
  • Rise/Fall Time
    90 ps
  • Wavelength Temp. Coefficient
    0.06 nm/Degree C
  • Threshold Current :
    1.5 to 2.75 mA
  • Forward Voltage
    1.6 to 2.1 V
  • Reverse Voltage
    10 V
  • Operating Current
    6 mA
  • Operating Current
    6 mA
  • Operating Voltage
    1.6 to 2.1 V
  • Monitor Current
    200 to 800 µA
  • Laser Class
    class 1M
  • Fiber Modes
    Multi-Mode
  • Series Resistance
    20 to 60 Ohms
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Coaxial Pigtailed
  • Package
    TOSA

Physical Properties

  • Fiber core diameter
    50 µm

Connections & Interface

  • Connector
    LC-type

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
