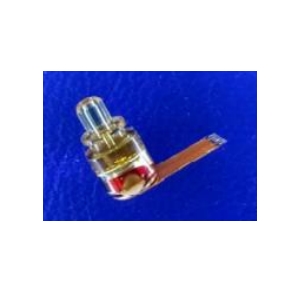

TLC-P85A846-25M

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The TLC-P85A846-25M from Lasermate Group is a Laser Diode with Wavelength 830 nm, 850 nm, 860 nm, Threshold Current 0.7 to 1.2 mA, Operating Current 6.5 mA, Operating Current 6.5 mA, Operating Voltage 2.2 V. More details for TLC-P85A846-25M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TLC-P85A846-25M
  • Manufacturer
    Lasermate Group
  • Description
    25Gbps LC Connectorized 850nm VCSEL plus Monitor PD with FPC

Applications

  • Application
    25Gbps data rate operation

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm, 850 nm, 860 nm
  • Spectral Width (FWHM)
    0.6 nm
  • Slope Efficiency
    0.14 mW/mA
  • Wavelength Temp. Coefficient
    0.07 nm/Degree C
  • Threshold Current :
    0.7 to 1.2 mA
  • Forward Voltage
    2.2 V
  • Reverse Voltage
    5 V
  • Operating Current
    6.5 mA
  • Operating Current
    6.5 mA
  • Operating Voltage
    2.2 V
  • Capacitance
    12 pF (PD)
  • Monitor Current
    100 µA
  • Series Resistance
    100 Ohms
  • Photo Diode Dark Current
    20 nA
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Coaxial Pigtailed
  • Package
    TOSA
  • Relative Intensity Noise
    -128 dB/Hz

Connections & Interface

  • Connector
    LC-type

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
