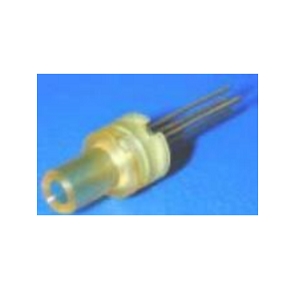

TSC-P85A4x6-2

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The TSC-P85A4x6-2 from Lasermate Group is a Laser Diode with Wavelength 830 nm, 850 nm, 860 nm, Threshold Current 1.7 to 3 mA, Operating Current 6 mA, Operating Current 6 mA, Operating Voltage 1.6 to 2.1 V. More details for TSC-P85A4x6-2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TSC-P85A4x6-2
  • Manufacturer
    Lasermate Group
  • Description
    1.25Gbps 850nm VCSEL SC-TOSA with Monitor PD

Applications

  • Application
    1.25Gbps data rate operation

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm, 850 nm, 860 nm
  • Spectral Width (FWHM)
    0.85 nm
  • Slope Efficiency
    0.04 to 0.12 mW/mA
  • Rise/Fall Time
    0.15 to 0.25 ns
  • Wavelength Temp. Coefficient
    0.06 nm/Degree C
  • Threshold Current :
    1.7 to 3 mA
  • Forward Voltage
    1.6 to 2.1 V
  • Reverse Voltage
    5 V
  • Operating Current
    6 mA
  • Operating Current
    6 mA
  • Operating Voltage
    1.6 to 2.1 V
  • Monitor Current
    200 to 800 µA
  • Fiber Modes
    Multi-Mode
  • Series Resistance
    35 to 65 Ohms
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Coaxial Pigtailed
  • Package
    SC-TOSA
  • Relative Intensity Noise
    -130 to -120 dB/Hz
  • Note
    Breakdown Voltage: 1.6 to 2.1 V

Physical Properties

  • Fiber core diameter
    50 µm, 62.5 µm

Connections & Interface

  • Connector
    SC

Temperature

  • Operating Temperature
    -10 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
