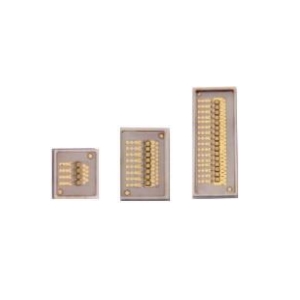

VCAx-850P50WA

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The VCAx-850P50WA from Lasermate Group is a Laser Diode with Wavelength 840 nm, 850 nm, 860 nm (Peak), Output Power 40 to 52 W, Output Power 40 to 52 W, Threshold Current 0.1 A, Operating Current 120 A. More details for VCAx-850P50WA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VCAx-850P50WA
  • Manufacturer
    Lasermate Group
  • Description
    850nm 50W Pulsed VCSEL Diode Array

Applications

  • Application
    3D sensors, Proximity sensor, 3D detection, Scanning lidar, Laser curtain, Range finder sensor

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    840 nm, 850 nm, 860 nm (Peak)
  • Output Power
    40 to 52 W
  • Output Power
    40 to 52 W
  • Configuration
    Array
  • Beam Divergence
    20 Degree
  • Rise/Fall Time
    2 ns (Rise)
  • Threshold Current :
    0.1 A
  • Forward Voltage
    36 to 40 V
  • Reverse Voltage
    5 V
  • Operating Current
    120 A
  • Operating Current
    120 A
  • Operating Voltage
    36 to 40 V
  • Emitting Area
    370 x 371 µm
  • Series Resistance
    0.30 to 0.33 Ohms
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Chip, Die
  • Package
    Chip, Die
  • Stack/Array
    Array

Temperature

  • Temperature Drift
    0.07 nm/Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 105 Degree C

Technical Documents
Click to view more product details on manufacturer's website
