VCC-81A150H

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The VCC-81A150H from Lasermate Group is a Laser Diode with Wavelength 800 nm, 810 nm, 820 nm (Center), Output Power 130 to 275 mW, Output Power 130 to 275 mW, Threshold Current 100 mA, Operating Current 300 to 500 mA. More details for VCC-81A150H can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VCC-81A150H
  • Manufacturer
    Lasermate Group
  • Description

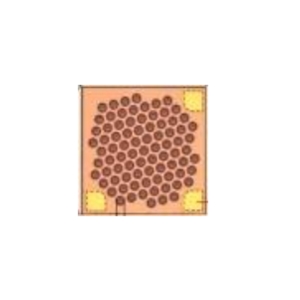

    810nm 150mW VCSEL Chip

Applications

  • Application
    3D sensor, Lidars, IR illumination, Range finder sensor, Solid-state pump source, Medical application

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    800 nm, 810 nm, 820 nm (Center)
  • Output Power
    130 to 275 mW
  • Output Power
    130 to 275 mW
  • Slope Efficiency
    0.6 W/A
  • Beam Divergence
    25 Degree
  • Threshold Current :
    100 mA
  • Forward Voltage
    1.6 to 2.4 V
  • Operating Current
    300 to 500 mA
  • Operating Current
    300 to 500 mA
  • Operating Voltage
    1.6 to 2.4 V
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Chip, Die
  • Package
    Chip, Die

Temperature

  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
