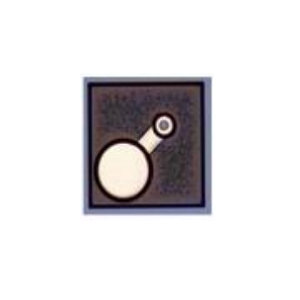

VCC-85A2G

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The VCC-85A2G from Lasermate Group is a Laser Diode with Wavelength 840 nm, 850 nm, 860 nm (Peak), Output Power 1.8 mW, Output Power 1.8 mW, Threshold Current 1.5 to 3 mA, Operating Current 7 mA. More details for VCC-85A2G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VCC-85A2G
  • Manufacturer
    Lasermate Group
  • Description
    1.25/2.5Gbps Multimode 850nm VCSEL Chip

Applications

  • Application
    High speed Data communications, Gigabit ethernet, Fiber channel

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    840 nm, 850 nm, 860 nm (Peak)
  • Output Power
    1.8 mW
  • Output Power
    1.8 mW
  • Spectral Width (FWHM)
    0.85 nm
  • Slope Efficiency
    0.2 to 0.5 W/A
  • Beam Divergence
    14 to 30 Degree
  • Rise/Fall Time
    110 ps
  • Wavelength Temp. Coefficient
    0.06 nm/Degree C
  • Threshold Current :
    1.5 to 3 mA
  • Forward Voltage
    1.8 to 2.2 V
  • Reverse Voltage
    5 V
  • Operating Current
    7 mA
  • Operating Current
    7 mA
  • Operating Voltage
    1.8 to 2.2 V
  • Series Resistance
    20 to 55 Ohms
  • Package Type
    Chip
  • Package
    Chip

Temperature

  • Operating Temperature
    0 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
