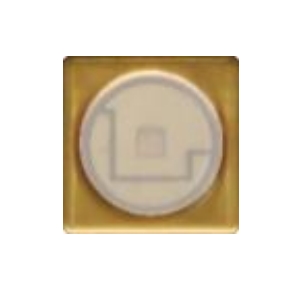

VCD35A-850C1Wx

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The VCD35A-850C1Wx from Lasermate Group is a Laser Diode with Wavelength 840 nm, 850 nm, 860 nm (Peak), Output Power 1 W, Output Power 1 W, Threshold Current 0.15 A, Operating Current 1.2 A. More details for VCD35A-850C1Wx can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VCD35A-850C1Wx
  • Manufacturer
    Lasermate Group
  • Description
    850nm 1000mW CW VCSEL Diode with Diffuser 3535 SMD Package

Applications

  • Application
    3D sensors, Proximity sensor, Lidar, IR illumination, Medical application

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    840 nm, 850 nm, 860 nm (Peak)
  • Output Power
    1 W
  • Output Power
    1 W
  • Slope Efficiency
    1 W/A
  • Threshold Current :
    0.15 A
  • Forward Voltage
    2.18 V
  • Reverse Voltage
    5 V
  • Operating Current
    1.2 A
  • Operating Current
    1.2 A
  • Operating Voltage
    2.18 V
  • Series Resistance
    0.5 Ohms
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Surface Mount
  • Package
    Surface Mount

Temperature

  • Temperature Drift
    0.07 nm/Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 105 Degree C
