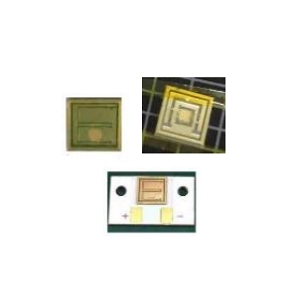

VCx-850C6WA

Laser Diode by Lasermate Group
325 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The VCx-850C6WA from Lasermate Group is a Laser Diode with Wavelength 840 nm, 850 nm, 860 nm (Peak), Output Power 6 W, Output Power 6 W, Threshold Current 1 A, Operating Current 9.5 A. More details for VCx-850C6WA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VCx-850C6WA
  • Manufacturer
    Lasermate Group
  • Description
    850nm 6000mW CW VCSEL Diode

Applications

  • Application
    3D sensor, Lidars, IR illumination, Proximity sensor, Medical application

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    840 nm, 850 nm, 860 nm (Peak)
  • Output Power
    6 W
  • Output Power
    6 W
  • Slope Efficiency
    0.6 W/A
  • Beam Divergence
    25 Degree
  • Threshold Current :
    1 A
  • Forward Voltage
    2.7 V
  • Reverse Voltage
    5 V
  • Operating Current
    9.5 A
  • Operating Current
    9.5 A
  • Operating Voltage
    2.7 V
  • Series Resistance
    0.1 Ohms
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Surface Mount
  • Package
    Surface Mount, T-Mount
  • Note
    Number of Aperture: 1184

Temperature

  • Temperature Drift
    0.07 nm/Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 105 Degree C
