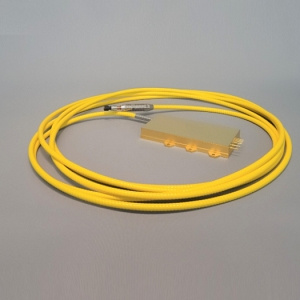

The M450±10-5-F105/22-C1S-P from PhotonTec Berlin is a Laser Diode that operates at a wavelength of 450 nm. It delivers an output power of 5 W and has a spectral width below 10 nm (FWHM). This laser diode has a slope efficiency of 1.72 W/mA and power conversion efficiency of 38%. It has a fiber pigtailed core diameter of 105 &mum and numerical aperture of 0.22. This fiber-coupled laser diode supports an SMA fiber connector with fiber lengths of 1 m and 5 m. It has a thermistor resistance of 10 kOhms and monitor photodiode current of 100 &muA - 1000 &muA. This laser diode requires a threshold current of 0.4 A, DC supply voltage of 4.1 V, and consumes 3.2 A of current. It is available in a package that measures 75 mm x 42 mm x 24 mm.
