LDX-3410-980

Laser Diode by RPMC Lasers Inc.
116 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RPMC Lasers Inc..

The LDX-3410-980 from RPMC Lasers Inc. is a Laser Diode with Wavelength 980 nm, Output Power 3200 mW (Fiber) to 4000 mW, Output Power 3200 to 4000 mW, Threshold Current 300 mA, Operating Current 4400 mA. More details for LDX-3410-980 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDX-3410-980
  • Manufacturer
    RPMC Lasers Inc.
  • Description
    980 nm Multimode Laser Diode

General Parameters

  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm
  • Output Power
    3200 mW (Fiber) to 4000 mW
  • Output Power
    3200 to 4000 mW
  • Spectral Width (FWHM)
    2 nm
  • Configuration
    Single-Emitter
  • Beam Divergence
    7 Degrees (Parallel), 26 Degrees (Perpendicular)
  • Beam Divergence Parallel
    7 Degrees
  • Beam Divergence Perpendicular
    26 Degrees
  • Wavelength Tolerance
    10 nm
  • Transverse Mode
    TE
  • Threshold Current :
    300 mA
  • Operating Current
    4400 mA
  • Operating Current
    4400 mA
  • Operating Voltage
    1.8 V
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    100 µm
  • Fiber Modes
    Multi-Mode

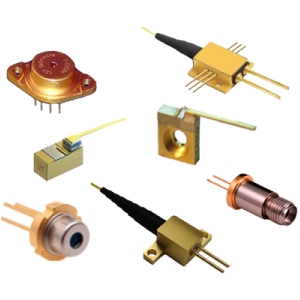

  • Package Type
    C-Mount, B-Mount, Q-Mount, Chip, Sub-Mount, TO-Can, HHL, HHL Pigtail
  • Package
    Cstd, B, Q, COS, TO3 w/o TEC, HHL, BFC w/o TEC, FCP

Physical Properties

  • Fiber length
    100 µm (HHL, Butterfly), 250 µm (9mm SMA)

Temperature

  • Operating Temperature
    25 Degree C
