BF-830-0070-XXX

Laser Diode by Sheaumann Laser | Visit website

Note: Your Quotation Request will be directed to Sheaumann Laser.

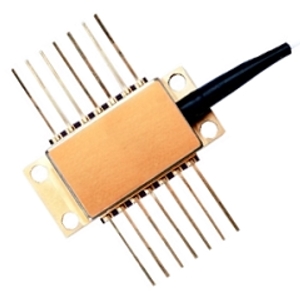

The BF-830-0070 from Sheaumann Laser is a Continuous Wave Laser Diode that operates at a wavelength of 830 nm. It delivers an output power of 70 mW and has a slope efficiency of 0.7 W/A. This single-mode laser diode requires a threshold current of 35 mA, DC voltage of 2.1 V, and consumes 130 mA of current. It has an internal thermoelectric cooler, a thermistor, and photodiode. This laser diode is electrically isolated and has an FC/APC connector. It is available in an electrically isolated, hermetically sealed 14-pin butterfly package and is ideal for Raman spectroscopy & medical applications.

Product Specifications

View similar products

Product Details

  • Part Number
    BF-830-0070-XXX
  • Manufacturer
    Sheaumann Laser
  • Description
    830 nm CW Laser Diode for Raman Spectroscopy & Medical Applications

Applications

  • Application
    Raman Spectroscopy, Medical

General Parameters

  • Technology
    Fabry-Perot (FP), Quantum Well
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Output Power
    70 mW
  • Output Power
    70 mW
  • Operating Voltage
    2.1 to 2.5 V
  • Operating Current
    130 mA
  • Operating Current
    130 mA
  • Threshold Current :
    35 to 50 mA
  • Fiber Modes
    Single Mode
  • Slope Efficiency
    0.7 W/A
  • Package Type
    Butterfly
  • Package
    14 Pin Butterfly
  • Type
    Fiber-Coupled Laser Diode

Connections & Interface

  • Connector
    FC/APC
