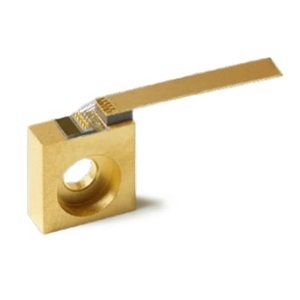

CMC-808-3000-13M

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The CMC-808-3000-13M from Sheaumann Laser is a Laser Diode with Wavelength 808 nm, Output Power 3 W, Output Power 3 W, Threshold Current 400 to 600 mA, Operating Current 3.2 to 3.6 A. More details for CMC-808-3000-13M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CMC-808-3000-13M
  • Manufacturer
    Sheaumann Laser
  • Description
    808 nm Laser Diodes with 3.2 to 3.6 A Current

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Output Power
    3 W
  • Output Power
    3 W
  • Slope Efficiency
    1 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    8 Degree
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    8 Degree
  • Emitter Width
    100 µm
  • Threshold Current :
    400 to 600 mA
  • Operating Current
    3.2 to 3.6 A
  • Operating Current
    3.2 to 3.6 A
  • Operating Voltage
    2 to 2.5 V
  • Laser Class
    CLASS IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    Sub-Mount
  • Package
    Sub-Mount

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
