CMC-915-3000-1XX

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

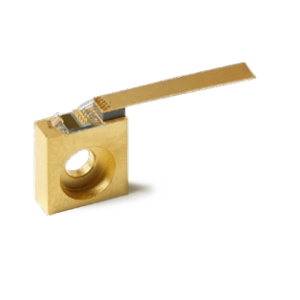

The CMC-915-3000-1 from Sheaumann Laser is a Multimode Continuous-wave Laser Diode that operates at a wavelength of 915 nm. This single spatial mode laser diode delivers an optical output power of up to 3W and has a slope efficiency of 1 W/A. It has a

Product Specifications

View similar products

Product Details

  • Part Number
    CMC-915-3000-1XX
  • Manufacturer
    Sheaumann Laser
  • Description
    915 nm Multimode Continuous Wave Laser Diode for Remote Power Transfer Applications

Applications

  • Application
    Defense, Laser Pumping, Laser Therapy, Medical, Raman Spectroscopy, Remote Power Transfer

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    915 nm
  • Output Power
    3 W
  • Output Power
    3 W
  • Slope Efficiency
    1 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    8 Degrees (Parallel), 30 Degrees (Perpendicular)
  • Beam Divergence Parallel
    8 Degrees
  • Beam Divergence Perpendicular
    30 Degrees
  • Emitter Width
    100 µm
  • Threshold Current :
    350 to 550 mA
  • Operating Current
    3.3 to 3.8 A
  • Operating Current
    3.3 to 3.8 A
  • Operating Voltage
    1.7 to 2.2 V
  • Laser Color
    Infrared
  • Package Type
    Sub-Mount

Temperature

  • Operating Temperature
    -20 to 50 Degree C
