Laser Diode by Sheaumann Laser | Visit website

Note: Your Quotation Request will be directed to Sheaumann Laser.

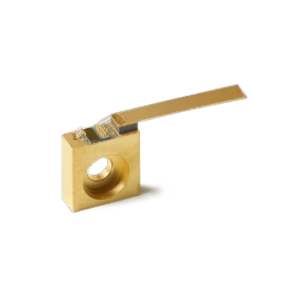

The CMC-785-1500-1 from Sheaumann Laser is a Continuous Wave Laser Diode that operates at a wavelength of 1064 nm. It delivers an output power of 2 W and has a slope efficiency of 0.8 W/A. This multimode laser diode has a beam divergence of 30 degrees (vertical far-field) & 8 degrees (horizontal far-field) at FWHM. It requires a threshold current of 325 mA, DC voltage of 1.7 V, and consumes 2.8 A of current. This single-emitter laser diode has an optional microlens with a 100 μm emitter. It is available in a Cu submount package with ultra-low & high AR coating options and is ideal for Raman spectroscopy, laser pumping, laser therapy, defense, and medical applications.

Product Specifications

View similar products

Product Details

  • Part Number
  • Manufacturer
    Sheaumann Laser
  • Description
    1064 nm CW Multimode Laser diode for Medical Applications


  • Application
    Raman Spectroscopy, Laser Therapy, Laser Pumping, Medical, Defense

General Parameters

  • Configuration
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm
  • Output Power
    2 W
  • Output Power
    2 W
  • Operating Voltage
    1.7 to 2.2 V
  • Operating Current
    2.8 to 3.4 A
  • Operating Current
    2.8 to 3.4 A
  • Emitter Width
    100 µm
  • Threshold Current :
    325 to 550 mA
  • Beam Divergence
    8 Degrees (Parallel), 30 Degrees (Perpendicular)
  • Beam Divergence Parallel
    8 Degrees
  • Beam Divergence Perpendicular
    30 Degrees
  • Laser Color
  • Slope Efficiency
    0.8 W/A
  • Package Type
  • Type
    Free Space Laser Diode


  • Operating Temperature
    -20 to 50 Degree C
