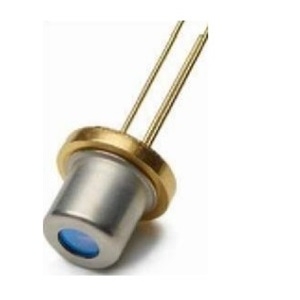

M9T-A64-0650-R5P

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The M9T-A64-0650-R5P from Sheaumann Laser is a Laser Diode with Wavelength 1064 nm, Output Power 650 mW, Output Power 650 mW, Threshold Current 50 to 70 mA, Operating Current 1150 to 1300 mA. More details for M9T-A64-0650-R5P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M9T-A64-0650-R5P
  • Manufacturer
    Sheaumann Laser
  • Description
    1064 nm Laser Diodes with 650 mW Power

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm
  • Output Power
    650 mW
  • Output Power
    650 mW
  • Slope Efficiency
    0.6 W/A
  • Beam Divergence
    28 Degree (Vertical), 9 Degree (Horizontal)
  • Beam Divergence Parallel
    9 Degree
  • Beam Divergence Perpendicular
    28 Degree
  • Threshold Current :
    50 to 70 mA
  • Operating Current
    1150 to 1300 mA
  • Operating Current
    1150 to 1300 mA
  • Operating Voltage
    1.7 to 2.2 V
  • Laser Class
    CLASS IV
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-9

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
