FPL1054S

Laser Diode by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

The FPL1054S from Thorlabs Inc is a Laser Diode with Wavelength 1625 nm, Output Power 0.08 W, Output Power (CW) 0.08 W, Operating Current 0.4 to 0.5 A, Operating Voltage 0.35 to 3.5 V. More details for FPL1054S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FPL1054S
  • Manufacturer
    Thorlabs Inc
  • Description

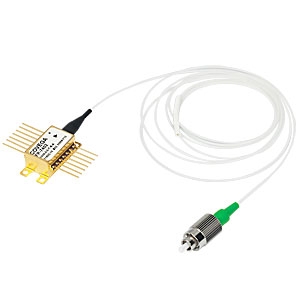

    1625 nm, 80 mW, Butterfly Laser Diode, SM Fiber, FC/APC

General Parameters

  • Technology
    Quantum Well, Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1625 nm
  • Output Power
    0.08 W
  • Output Power (CW)
    0.08 W
  • Operating Current
    0.4 to 0.5 A
  • Operating Voltage
    0.35 to 3.5 V
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-Pin

Physical Properties

  • RoHS
    Yes
