FPL2000C

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The FPL2000C from Thorlabs Inc is a Laser Diode with Wavelength 2000 nm, Output Power 0.03 W, Output Power (CW) 0.03 W, Operating Current 0.4 to 0.5 A. More details for FPL2000C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FPL2000C
  • Manufacturer
    Thorlabs Inc
  • Description

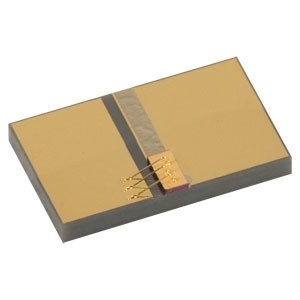

    2000 nm, 30 mW Typical, Chip on Submount, Laser Diode

General Parameters

  • Technology
    Fabry-Perot (FP), Quantum Well
  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    2000 nm
  • Output Power
    0.03 W
  • Output Power (CW)
    0.03 W
  • Configuration
    Single-Emitter
  • Operating Current
    0.4 to 0.5 A
  • Fiber Modes
    Single Mode
  • Package Type
    Surface Mount
  • Package
    Chip

Physical Properties

  • RoHS
    Yes
