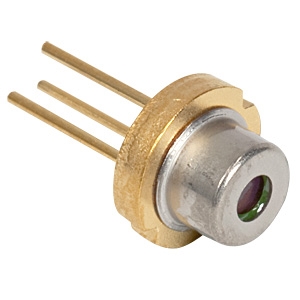

L658P040

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The L658P040 from Thorlabs Inc is a Laser Diode with Wavelength 658 nm, Output Power 0.04 W, Output Power (CW) 0.04 W, Operating Current 0.075 to 0.11 A, Operating Voltage 2.2 to 2.8 V. More details for L658P040 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L658P040
  • Manufacturer
    Thorlabs Inc
  • Description
    658 nm, 40 mW, Ø5.6 mm, A Pin Code, Laser Diode

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    658 nm
  • Output Power
    0.04 W
  • Output Power (CW)
    0.04 W
  • Reverse Voltage
    2 V
  • Operating Current
    0.075 to 0.11 A
  • Operating Voltage
    2.2 to 2.8 V
  • Fiber Modes
    Single Mode

Physical Properties

  • Dimension
    5.6 mm
  • RoHS
    Yes
