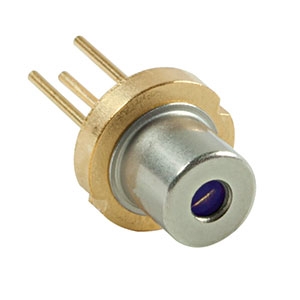

L880P010

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The L880P010 from Thorlabs Inc is a Laser Diode with Wavelength 880 nm, Output Power 0.01 W, Output Power (CW) 0.01 W, Operating Current 0.03 to 0.04 A. More details for L880P010 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L880P010
  • Manufacturer
    Thorlabs Inc
  • Description
    880 nm, 10 mW, Ø5.6 mm, A Pin Code, Laser Diode

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    880 nm
  • Output Power
    0.01 W
  • Output Power (CW)
    0.01 W
  • Configuration
    Single-Emitter
  • Reverse Voltage
    2 V
  • Operating Current
    0.03 to 0.04 A
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-18 (5.6 mm)

Physical Properties

  • Dimension
    5.6 mm
  • RoHS
    Yes
