LP405-SF10

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The LP405-SF10 from Thorlabs Inc is a Laser Diode with Wavelength 405 nm, Output Power 0.01 W, Output Power (CW) 0.01 W, Operating Current 0.05 to 0.06 A, Operating Voltage 5 to 5.5 V. More details for LP405-SF10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LP405-SF10
  • Manufacturer
    Thorlabs Inc
  • Description

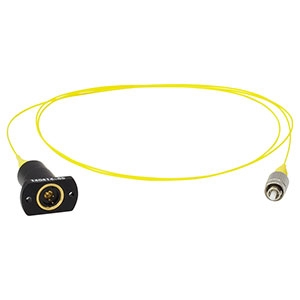

    405 nm, 10 mW, B Pin Code, SM Fiber-Pigtailed Laser Diode, FC/PC

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    405 nm
  • Output Power
    0.01 W
  • Output Power (CW)
    0.01 W
  • Configuration
    Single-Emitter
  • Reverse Voltage
    5 V
  • Operating Current
    0.05 to 0.06 A
  • Operating Voltage
    5 to 5.5 V
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can Pigtailed
  • Package
    1 mm

Physical Properties

  • Dimension
    5.6 mm
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC, PC
