LP830-SF30

Laser Diode by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The LP830-SF30 from Thorlabs Inc is a Laser Diode with Wavelength 830 nm, Output Power 0.03 W, Output Power (CW) 0.03 W, Operating Current 0.115 to 0.16 A, Operating Voltage 1.9 to 2.2 V. More details for LP830-SF30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LP830-SF30
  • Manufacturer
    Thorlabs Inc
  • Description

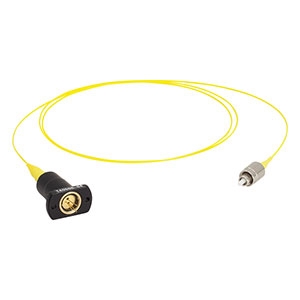

    830 nm, 30 mW, A Pin Code, SM Fiber-Pigtailed Laser Diode, FC/PC

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    830 nm
  • Output Power
    0.03 W
  • Output Power (CW)
    0.03 W
  • Configuration
    Single-Emitter
  • Reverse Voltage
    2 V
  • Operating Current
    0.115 to 0.16 A
  • Operating Voltage
    1.9 to 2.2 V
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can Pigtailed
  • Package
    1 mm

Physical Properties

  • Dimension
    9 mm
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC, PC

Technical Documents
Click to view more product details on manufacturer's website
Request a Quote
