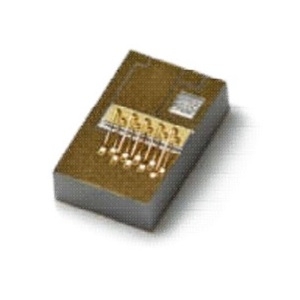

The QA-785-0150-XXX from Sheaumann Laser is a Continuous Wave (CW) Laser Diode that operates at a wavelength of 785 nm. It delivers an output power of 150 mW and has a slope efficiency of 0.9 W/A. This single-mode laser diode has a beam divergence of 25 degrees (vertical far-field) and 8 degrees (horizontal far-field) at FWHM. It requires a threshold current of 35 mA, DC voltage of 1.9 V, and consumes 170 mA of current. This laser diode is available in a Cu submount package with ultra-low or high AR coating options.
